Q10094 6-pin clock/trigger connector

Tags: Help, MSXB048, MSXB060, MSXB061, MSXB064, MSXB065, MSXB066, MSXB067

Applies to: a-Series DAP accessory models that include clocking and triggering signals on a 6-pin keyed connector

I have a board with a 6-pin keyed Molex connector for clocking input. How should I connect to it?

A 6-pin SIP (Molex) connector is used primarily for clock and trigger input on some analog input expansion boards. The connector is keyed with a 0.079" (2mm) spacing. It mates with female (receptable, socket) 6-pin connector on a connecting cable.

Related Products and Pinout

  1. Clock and Trigger for Input Sampling

    A 6-pin Molex connector is used for clock and trigger for input sampling on the following analog expansion boards. The location of the each connector is also listed.

    • MSXB048 - J15
    • MSXB060/MSXB061 - J6
    • MSXB064/MSXB065 - J15
    • MSXB066/MSXB067 - J15

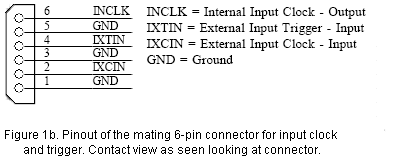

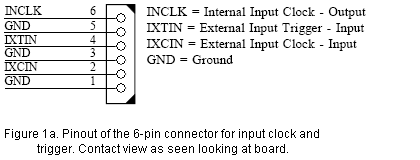

    Figures 1a and 1b show the pinout of the 6-pin connector on the expansion boards and the mating connector on the cable.


  2. Clock and Trigger for Output Updates

    A 6-pin Molex connector is used for clock and trigger for output updates on the following analog expansion boards. The location of the each connector is also listed.

    • MSXB048 - J16
    • MSXB060/MSXB061 - J7
    • MSXB064/MSXB065 - J16
    • MSXB066/MSXB067 - J16

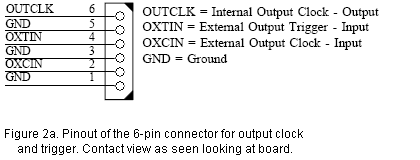

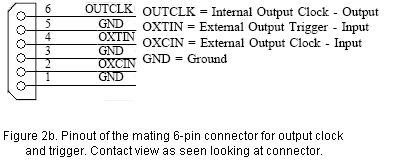

    Figures 2a and 2b show the pinout of the 6-pin connector on the expansion boards and the mating connector on the cable.


Mating Hardware

The 6-pin SIP connectors on the expansion boards are Molex part 53014-0610, or equivalent. They mate with the following parts from Molex for a discrete wire cable:

  • 6-pin connector shell - 51004-0600
  • Crimp pins - 50011-8100, 24-30 AWG

Many other connector manufacturers make compatible mating connectors. Manufacturer representatives can generally find mating parts based on the Molex part numbers.

L

MSXB048 Manual

MSXB060/MSXB061 Manual

MSXB064/MSXB065 Manual

MSXB066/MSXB067 Manual

Model number suffix

Note: Information on this page was collected from multiple sources. If you have any concerns about the accuracy of the information provided here, check the hardware manuals for your specific products. Those manuals are the authoritative sources.
