xDAP Data Acquisition Systems

The new xDAP line of Data Acquisition Processor systems combines a high performance analog interface with a speed-optimized USB host connection.

This combination allows you to build uncompromising data acquisition systems with a laptop, or any other USB connected Windows PC.

• Simultaneous sampling
• USB connectivity to laptops and workstations
• Differential inputs
• High accuracy and repeatability
• Continuous maximum-rate disk logging with DAPstudio
• DAPL 3000 onboard operating system

Each xDAP is a semi-autonomous data acquisition system: it can – after programming – run independently from its host PC.

PC software communicates with, configures, and controls the system, but xDAP can be set up to run for long periods – or even indefinitely – without any connection to a PC.

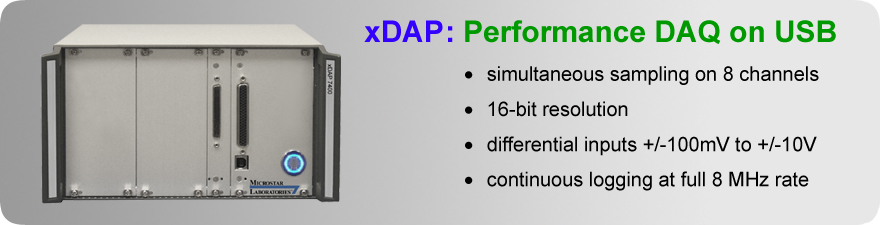

xDAP 7400

The xDAP 7400 – the first of the xDAP line – lets you use any PC laptop with a free USB 2.0 port to develop and control a data acquisition system that

• samples 8 channels simultaneously with
• 16-bit resolution
• at 1 million samples per second on each channel.

Each xDAP 7400 includes a 16-bit analog-to-digital converter running at 1 million samples per second on each of 8 channels simultaneously, for a throughput of 8 million samples per second.

One gigabyte of local memory provides space for data buffers that let xDAP 7400 sustain this throughput indefinitely, transferring samples to the PC as required, with no loss of data.

Recent tests have confirmed not only continuous transfer to a PC at the full 8 million samples per second but also continuous disk-logging of the data.
